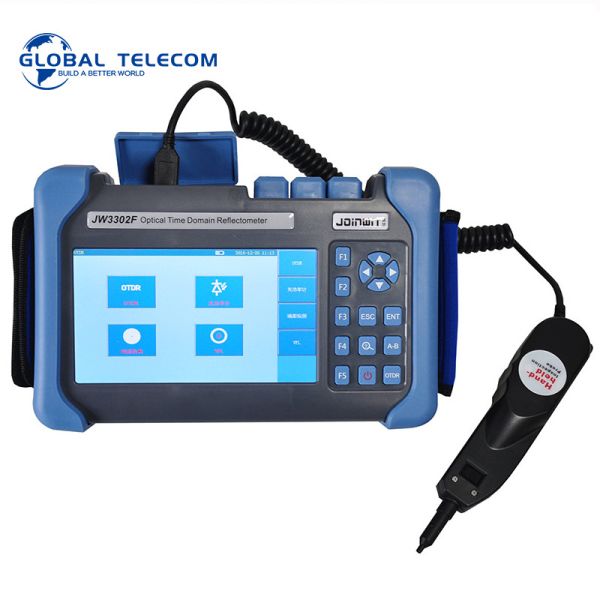

Joinwit JW3302F Single Mode Multimode Handheld OTDR
with PON Network Test and Visual Fault Locator
Description
JW3302F series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; JW3302F is specially designed for that kind of application. It’s economic, having outstanding performance.
JW3302F is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes JW3302F more smart and compact and multi-purpose.
Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, JW3302F can be your best assistant.
Features
* Integrated design, smart and rugged* IP65 protection level, outdoorenhanced
* 7-inch anti-reflection LCDscreen
* PON online test module(1625nm) is optional
* MMF test module (850/1300nm)is optional
* Support multi-language displayand input
Main functions
VFL (visual fault locator)
The VFL, available as a standard module in JW3302F series OTDR, offers built-in 650nm visual fault location on a FC/UPC connector.
PON ONLINE TEST
JW3302F series OTDR uses 1625nm wavelength to scan and analyze the access point and proceed online testing with optical filter,and will not disturb the service.
PM (power meter)
JW3302F series OTDR comes with optional built-in power meter that let technicians easily verify the presence of a signal.
LS (laser source)
JW3302F series OTDR comes with optional built-in laser source through OTDR1 Port that let technicians easily verify the total loss of the local network with a power meter.
FM (fiber microscope)
The optional fiber inspection probe facilitates the inspection before the connection. JW3302F series OTDR offers this capability through a USB port connection, which allows quick and easy inspection of connector end faces for contamination and also enables it capture and store the image.
Humanized Test Interface
JW3302F series OTDR could display Splice loss, Connector loss, Fiber attenuation, Reflection of points, Link opitcal return loss and distance to fiber events etc. With test information in a smart way, user could get detailed information immediately.
FTTH test within PON networks
JW3302F series OTDR’s models, like T2 and T4, are dedicated to the testing of PON network maintenance and troubleshooting without service disruption.
Fiber Microscope
Microscope is optional for JW3302F series OTDR. 400X amplification and variety of accessories ensure perfect terminal condition before test. make a type specimen book.
| Technical Specifications |
| Dimension | 253×168×73.6mm
1.5kg (battery included) |
| Display | 7 inch TFT-LCD with LED backlight (touch screen function is optional) |
| Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) |
| Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50~60Hz |
| Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification)
Operating time: 12 hours, Telcordia GR-196-CORE
Charging time: <4 hours (power off) |
| Power Saving | Backlight off: Disable/1 to 99 minutes
Auto shutdown: Disable/1 to 99 minutes |
| Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for
availability of others) |
| Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)
Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)
Proof: IP65 (IEC60529) |
| Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Optional: SC/ST/LC adapter, Bare fiber adapter |
| Technical parameter |
| Type | Testing Wavelength(MM: ±20nm, SM: ±10nm) | Dynamic Range (dB) | Event Dead-zone (m) | Attenuation Dead-zone (m) |
| JW3302F-S1 | 1310/1550 | 32/30 | 1 | 8/8 |
| JW3302F-S2 | 1310/1550 | 37/35 | 1 | 8/8 |
| JW3302F-S3 | 1310/1550 | 42/40 | 0.8 | 8/8 |
| JW3302F-S4 | 1310/1550 | 45/42 | 0.8 | 8/8 |
| JW3302F-T1 | 1310/1490/1550 | 30/28/28 | 1.5 | 8/8/8 |
| JW3302F-T2 | 1310/1550/1625 | 30/28/28 | 1.5 | 8/8/8 |
| JW3302F-T3 | 1310/1490/1550 | 37/36/36 | 0.8 | 8/8/8 |
| JW3302F-T4 | 1310/1550/1625 | 37/36/36 | 0.8 | 8/8/8 |
| Test parameter |
| Pulse Width | Single mode: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
| Testing Distance | Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km |
| Sampling Resolution | Minimum 5cm |
| Sampling Point | Maximum 128,000 points |
| Linearity | ≤0.05dB/dB |
| scale Indication | X axis: 4m~70m/div, Y axis: Minimum 0.09dB/div |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
| Reflectance Accuracy | Single mode: ±2dB, multi-mode: ±4dB |
| IOR Setting | 1.4000~1.7000, 0.0001 step |
| Units | Km, miles, feet |
| OTDR Trace Format | Telcordia universal, SOR, issue 2 (SR-4731)
OTDR: User selectable automatic or manual set-up |
| Testing Modes | Visual fault locator: Visible red light for fiber identification and troubleshooting
Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)
Field microscope probe |
| Fiber Event Analysis | -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps)
-Reflective: 0.01 to 32dB (0.01dB steps)
-Fiber end/break: 3 to 20dB (1dB steps) |
| Other Functions | Real time sweep: 1Hz
Averaging modes: Timed (1 to 3600 sec.)
Live Fiber detect: Verifies presence communication light in optical fiber
Trace overlay and comparison |
| VFL Module (Visual Fault Locator, as standard function): |
| Wavelength (±20nm) | 650nm |
| Power | 10mw,CLASSIII B |
| Range | 12km |
| Connector | FC/UPC |
| Launching Mode | CW/2Hz |
| PM Module (Power Meter, as optional function): |
| Wavelength Range (±20nm) | 800~1700nm |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test Range | Type A: -65~+5dBm (standard); Type B: -40~+23dBm (optional) |
| Resolution | 0.01dB |
| Accuracy | ±0.35dB±1nW |
| Modulation Identification | 270/1k/2kHz,Pinput≥-40dBm |
| Connector | FC/UPC |
| LS Module (Laser Source, as optional function): |
| Working Wavelength (±20nm) | 1310/1550/1625nm |
| Output Power | Adjustable -25~0dBm |
| Accuracy | ±0.5dB |
| Connector | FC/UPC |
| FM Module (Fiber Microscope, as optional function): |
| Magnification | 400X |
| Resolution | 1.0µm |
| View of Field | 0.40×0.31mm |
| Storage/working Condition | -18℃~35℃ |
| Dimension | 235×95×30mm |
| Sensor | 1/3 inch 2 million of pixel |
| Weight | 150g |
| USB | 1.1/2.0 |
| Adapter | SC-PC-F (For SC/PC adapter)
FC-PC-F (For FC/PC adapter)
LC-PC-F (For LC/PC adapter)
2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC) |
